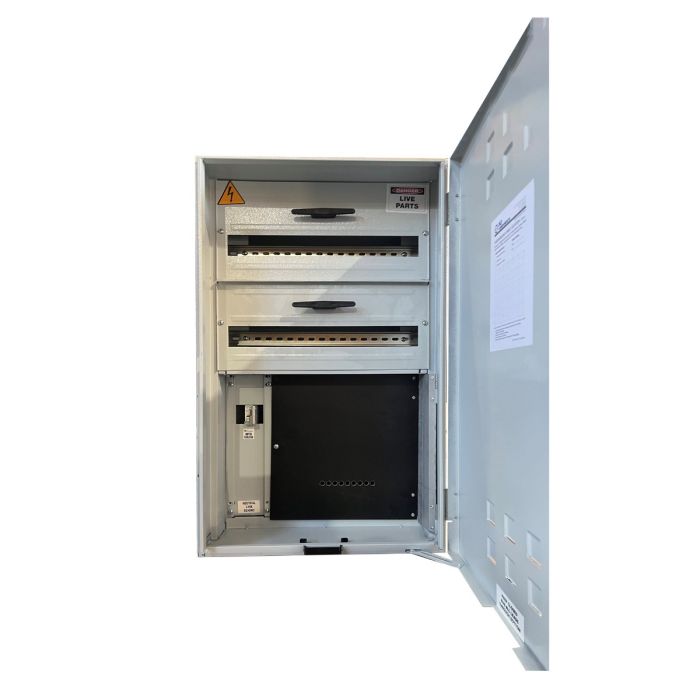

MES242NR
In stock
SKU
MES242NR
$100.00
Quick Overview
- SA Power Network Approved
- Designed to meet AS3000 Standard
- IP23 Protection Rating
- Powdercoat Finish (RAL7035)
- Pre-drilled Meter Panel (H350mm x W350mm)
- Double 21 Module DIN Capacity Switchboard
- Quality Hinged Door (Removable)
3Key Features
- SA Power Network Approved
- Designed to meet AS3000 Standard
- IP23 Protection Rating
- Powdercoat Finish (RAL7035)
- Pre-drilled Meter Panel (H350mm x W350mm)
- Double 21 Module DIN Capacity Switchboard
- Quality Hinged Door (Removable)
- Cable Access Top / Bottom
- 3 Additional Neutral Connections Provided For RCD
- Parts Bag Included
- Provision for Lockable door
- 63A Meter Isolator
- Optional XL wide panel
- Removable Meter Isolation section for XL wide panel provision
- Available In Rebated Option
- Optional Plinth & Rain Hood For Free Standing Application (Straight Sided Only)
| Specifications | Width | Height | Depth |
| Enclosure Size | 500 | 800 | 250 |
| Meter Panel | 350 | 350 | 6 |
| Neautral Grid | 11 x ø5mm (Suit up to 10mm) 9 x ø8mm (Suits up to 25mm) | ||
| Earth Grid | 10 x ø5mm (Suit up to 10mm) 1 x ø8mm (Suits up to 25mm) | ||
| SA Type 2 Straight Sided (Non Rebated) | |||||
| Product | Order Code | Meter Isolator | DIN | MCB Rating | Quantity |
| SA Type 2 | MES242NR | Not Supplied | 42 Pole | No MCB Supplied | 1 |
SA Type 2 with Single Phase MI | MES242NR-MI | Yes | 42 Pole | 1P 63A 6kA | 1 |
| SA Type 2 with Three Phase MI | MES242NR-MI3P | Yes | 42 Pole | 3P 63A 6kA | 1 |
| Accessory/Spare Parts | Order Code | Description | Quantity |
| Door & Latch | DRS2L | Door with Latch & Hinges -1.0 mm Powder Coated Steel | 1 |
| SA Type 2 STD Pre-drilled Panel | MPS2-D | Meter Panel - 350mm x 550 mm Machined Meter Panelwith Hinges | 1 |
| SA Type 2 STD Panel - Blank | MPS2-B | Meter Panel - 350mmx550mm Blank Meter Panel with Hinges | 1 |
| SA Type 1 - Rain Hood (Suits SA Type 2) | RHS1 | Rain Hood - Powder Coated Steel (Non Rebated Only) | 1 |
| SAType 1- 1000mm Plinth(Suits SAType 2) | PLS1-100 | Plinth - 3mm Powder Coated Steel 1m High (Non Rebated Only) | 1 |
| SAType 1- 750mmPlinth (SuitsSAType2) | PLS1-75 | Plinth - 3mm Powder Coated Steel 0.75m High (Non Rebated Only) | 1 |
