PW1-S6-5M/6M
In stock
SKU
PW1-S6-5M/6M
$100.00
Quick Overview

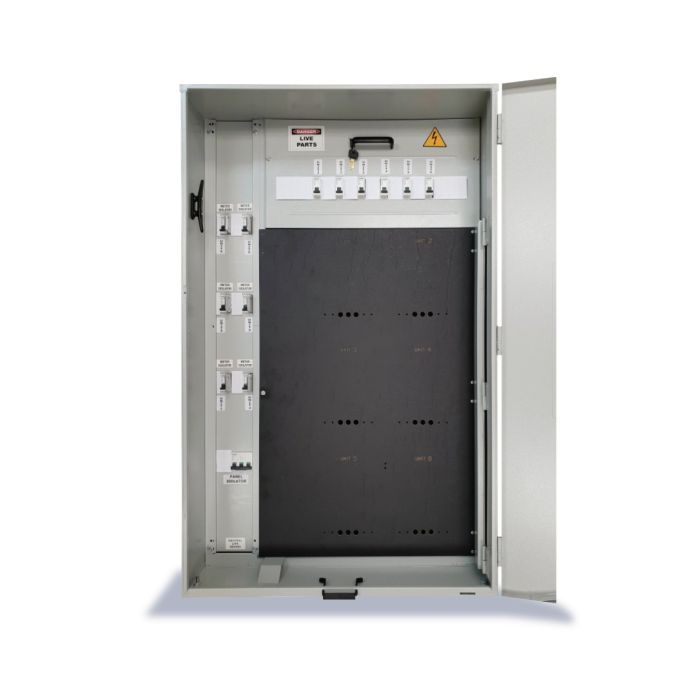

- Pre-wired MES6 Enclosure
- SA Power Network Approved
- Wired using Australian Made Flex Cable
- Door Lock SAPN Keyed
- Panel Isolator fitted
Key Features
- Pre-wired MES6 Enclosure
- SA Power Network Approved
- Wired using Australian Made Flex Cable
- Door Lock SAPN Keyed
- Panel Isolator fitted
- Meter Isolators with Lock Off
- Sub Mains MCB
- Plinth and Rain Hood available
| Specifications | Width | Height | Depth |
| Size | 700 | 1125 | 325 |
| Panel | 550 | 825 | 6 |
| Neautral Grid | 2 x ø5mm (Suits up to 10mm) 10 x ø8mm (Suits up to 25mm) | ||
| Earth Grid | 2 x ø5mm (Suits up to 10mm) 10 x ø8mm (Suits up to 25mm) | ||
| Mains Nuetral | 1 x ø5.5mm; 1 x ø7mm; 2 x ø9mm; 1 x 9mm x 9mm (Suits 75mm) | ||
| Accessory/Spare Parts | Order Code | Description | Quantity |
| SA Type 4 Plinth (Suits SA Type 6) | PLS4-75 | SA Type 4 Plinth 3mm Steel 750(H) 700(W) 325(D) | 1 |
| SA Type 4 Door - With Lock | DRS6L | STD SA Type 6 Replacement Hinged Door | 1 |
| Door Lock | DRL-G | Keyed to SAPN & ETSA Standard | 1 |
| Spare Part- SA Type 6 / 6 Meter Panel | MPS6-6D | SA Type 6 Hinged Meter Panel Drilled for 6 Units | 1 |
| Spare Part- SA Type 6 Blank Meter Panel | MPS6-B | Hinged Meter Pannel Blank for Custom Projects | 1 |
| SA Type 6 Meter Enclosure with 16mm Flex Pre-Wired | Order Code | Meter Panel Isolator | Tenancy Meter Isolators | Tenancy Main Switch MCB | Quantity |
| Single Phase 5 Tenency | PW1-S6 5M | 3P 63A | 5 x 1P 63A | 5 x 1P 63A | 1 |
| Single Phase 6 Tenency | PW1-S6 6M | 3P 63A | 6 x 1P 63A | 6 x 1P 63A | 1 |
PW-S6-5M/6M
