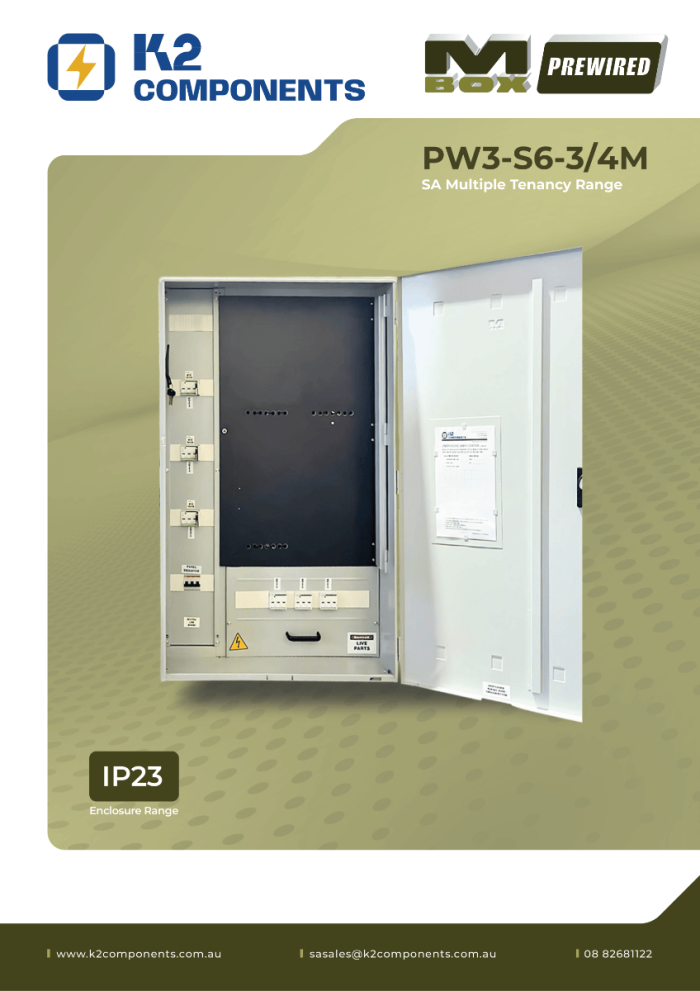

SA Multiple Tenancy Range
In stock
SKU
PW3-S6-3/4M
$100.00
Quick Overview
- Pre-wired up to 4x3 Phase Metter
- SA Power Network Approved
- Designed to meet AS3000 Standard
- Door Lock suits SAPN/ETSA requirements
- Plinth and Rain Hood available
Key Features
- Pre-wired up to 4x3 Phase Metter
- SA Power Network Approved
- Designed to meet AS3000 Standard
- Door Lock suits SAPN/ETSA requirements
- Plinth and Rain Hood available
PW3-S6-3/4M Feature & Benefits
- Suitable for up to 4 x Three Phase meters
- Accepted by ETSA Utilities & SA Power Networks
- IP23 Rated meter enclosure
- Galvanised steel construction Powder Coated Light Grey (RAL 7035)
- Designed to AS/NZS 3000:2018 requirements
- 24 Module full DIN
- Panel Isolator: up to 125 AMP, 3 Phase, 10KA
- Meter Isolator: 63 AMP, 3 Phase
- Service Neutral Link 1 x 16mm² / 1 x 25mm² / 1 x 70mm²
- Cable tie off point / Door open catch / Door cable protector
- ETSA Utilities / SAPN Compliant door lock & two keys
- Door open strap for easy installation & maintenance
| Code | Occupancy | Width | Height | Depth | Panel Size |
| PW3-S6-3/4M | Up to 4 Meter | 700mm | 1125mm | 325mm | 500x825mm |
| Earth & Neutral Bar Assembly | 6 x 25mm² Earth | 1 x 10mm² / 6 x 25mm² Neutral | |||
| Pre-wired 0.6/1KV TCW LSHF Flex | Active - 16mm² (Red / White / Blue) Neutral - 10mm² (Black) Meter Neutral - 6mm² (Black) | ||||
PW3-S6-3/4M
