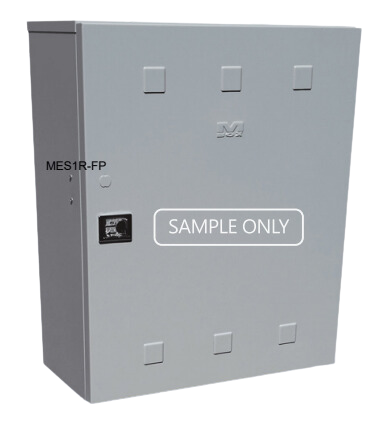

Full Panel No DIN Range SA Type 1
In stock
SKU
MES1R-FP
A$100.00
Quick Overview
- SA Power Network Approved
- Designed to meet AS3000 Standard
- IP23 Protection Rating
- Full Meter Panel
- Available In Rebated or Non-Rebated (Straight Sided) Options
Key Features:
- SA Power Network Approved
- Designed to meet AS3000 Standard
- IP23 Protection Rating
- Full Meter Panel
- Available In Rebated or Non-Rebated (Straight Sided) Options
- Optional Plinth & Rain Hood For Free Standing Application (Straight Sided Only)
| Specifications | Width | Height | Depth |
| Meter Enclosure | 500 | 600 | 250 |
| Meter Panel Size | 450 | 540 | 6 |
| SA Type 1 Full Panel Rebated or Non-Rebated | |||||
| Order Code | Name | Meter Isolator | DIN | MCB Rating | Quantity |
| MES1R-FP | SA Type 1 Rebated (Full Panel No DIN) | N/A | N/A | N/A | 1 |
| MES1NR-FP | SA Type 1 Non Rebated (Full Panel No DIN) | N/A | N/A | N/A | 1 |
| Order Code | Name | Description | Quantity |
| DRS1L | Door & Latch | Door with Latch & Hinges - 1.0mm Powder Coated Steel | 1 |
| MPS1FP-B | SA1 Full Panel Rebated - Blank Panel | Meter Panel - 450mm x 540mm Blank Meter Panel with Hinges | 1 |
| MPSNR FP-B | SA1 Full Panel Non Rebated - Blank Panel | Meter Panel - 470mm x 540mm NR Blank Meter Panel with Hinges | 1 |
