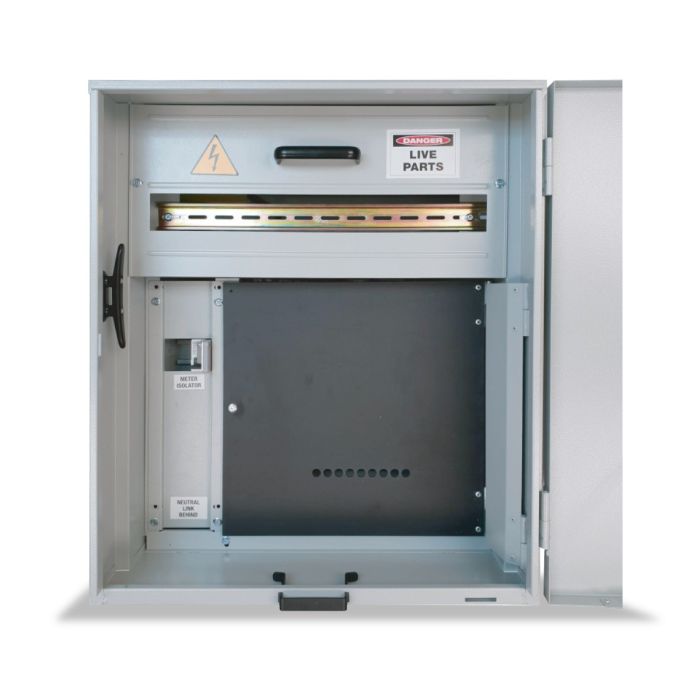

SA Type 1 Non Rebated
In stock
SKU
MES121NR
$100.00
Quick Overview
- SA Power Network Approved
- Designed to meet AS3000 Standard
- IP23 Protection Rating
- Powdercoat Finish (RAL7035)
- Pre-drilled Type X Meter Panel (H350mm x W350mm)
Key Features
- SA Power Network Approved
- Designed to meet AS3000 Standard
- IP23 Protection Rating
- Powdercoat Finish (RAL7035)
- Pre-drilled Type X Meter Panel (H350mm x W350mm)
- Full 21 Module DIN Capacity Switchboard
- Quality Hinged Door (Removable)
- Generous Wiring Room & Cable Access Top / Bottom
- 3 Additional Neutral Connections Provided For RCD
- Parts Bag Included
- Provision for Lockable door
- 63A Meter Isolator
- Optional XL wide panel
- Available In Rebated & Straight Sided Options
- Optional Plinth & Rain Hood For Free Standing Application (Straight Sided Only)

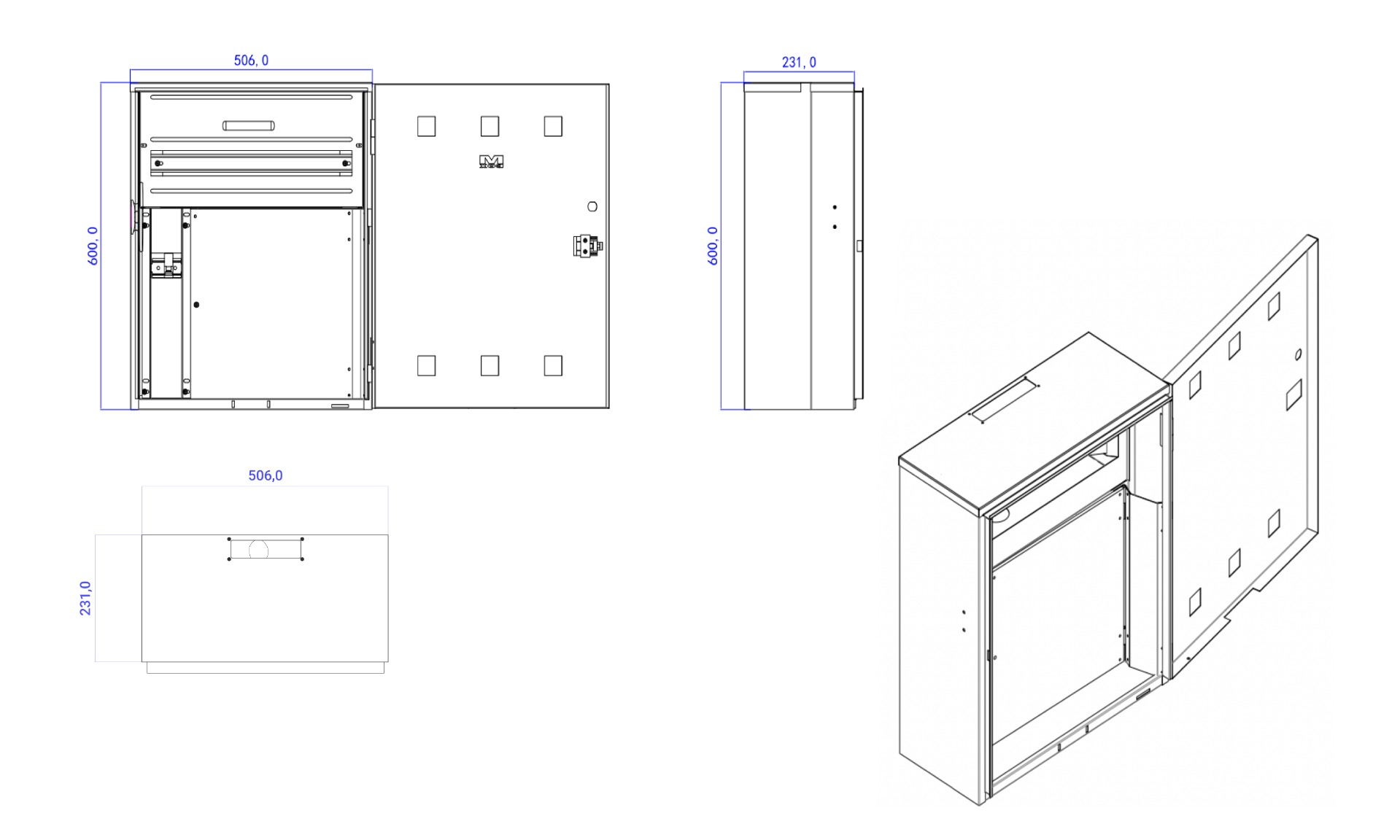

| Specifications | Width | Height | Depth |
| Enclosure Size | 500 | 600 | 250 |
| Meter Panel | 350 | 350 | 6 |
| Neutral Grid | 11 x Ø5mm (Suits up to 10mm) 9 x Ø8mm (Suits up to 25mm) | ||
| Earth Grid | 10 x Ø5mm (Suits up to 10mm) 1 x Ø8mm (Suits up to 25mm) | ||
| SA Type 1 Straight Sided ( Non Rebated) | ||||
| Product | Order Code | Meter Isolator | DIN | Panel Isolator |
| SA Type 1 | MES121NR | Not Supplied | 21 Pole | No MCB Supplied |
| SA Type 1 with Single Phase MI | MES121NR-MI | Yes | 21 Pole | 1P 63A 6kA |
| SA Type 1 with Three Phase MI | MES121NR-MI3P | Yes | 21 Pole | 3P 63A 6kA |
| Accessory/Spare Parts | Order Code | Description |
| SA Type 1 - Rain Hood (Suits SA Type2) | RHS1 | Rain Hood - Powder Coated Steel (Non Rebated Only) |
| SA Type 1 - 1000mm Plinth (Suits SA Type2) | PLS1-100 | Plinth - 3mm Powder Coated Steel 1m High (Non Rebated Only) |
| SA Type 1 - 750mm Plinth (Suits SA Type2) | PLS1-75 | Plinth - 3mm Powder Coated Steel 0.75 m High (Non Rebated Only) |
| Door & Latch | DRS1L | Door with Latch & Higes - 1.0mm Powder Coadted Steel |
| SA Type 1 STD Pre-drilled Panel (Suits NR) | MPS1-D | Meter Panel-350mm x 350mm Machined Meter Panel with Hinges |
| SA Type 1 STD Panel-Blank (Suits NR) | MPS1-B | Meter Panel-350mm x 350mm Blank Meter Panel with Hinges |
MES121NR
