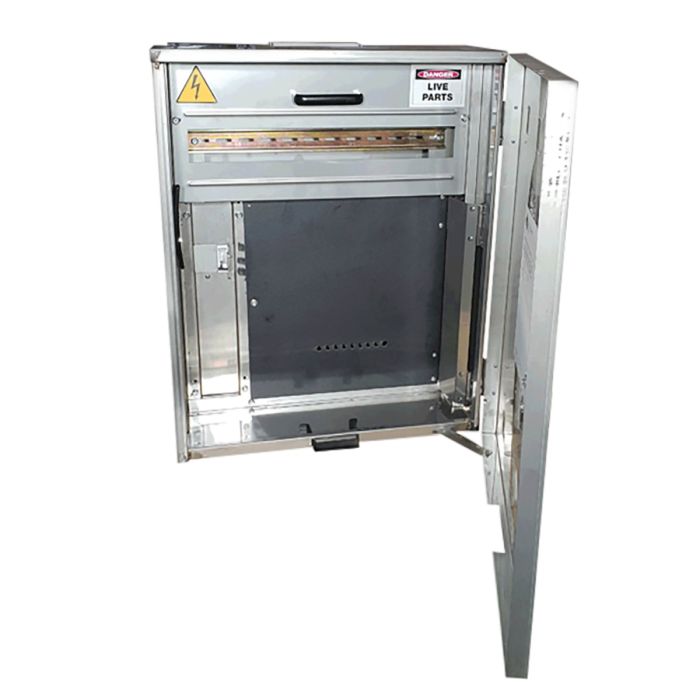

SA Type 1 Rebated Stainless Steel
In stock
SKU
MES121R-MISS
$100.00
Quick Overview
- SA Power Network Approved
- IP23 Protection Rating
- Stainless Steel Construction (Grade 316)
- Pre-drilled Type X Meter Panel (H350mm x W350mm)
- Full 21 Module DIN Capacity Switchboard
Key Features
- SA Power Network Approved
- IP23 Protection Rating
- Stainless Steel Construction (Grade 316)
- Pre-drilled Type X Meter Panel (H350mm x W350mm)
- Full 21 Module DIN Capacity Switchboard
- Quality Hinged Door (Removable)
- Generous Wiring Room & Cable Access Top / Bottom
- 3 Additional Neutral Connections Provided For RCD
- Parts Bag Included
- Provision for Lockable door
- 63A Meter Isolator
- Optional XL wide
- Available Non Rebated Straight Sided Option
- Optional Plinth & Rain Hood For Free Standing Application (Straight Sided Only)
| Specifications | Width | Height | Depth |
| Enclosure Size | 600 | 500 | 250 |
| Meter Panel | 350 | 350 | 6 |
| Neutral Grid | 11 x ø5mm (Suit up to 10mm) 9 x ø8mm (Suits up to 25mm) | ||
| Earth Grid | 10 x ø5mm (Suit up to 10mm) 1 x ø8mm (Suits up to 25mm) | ||
| SA TYPE 1 / 316 STAINLESS STEEL REBATED | ||||
| Order Code | Name | Meter Isolator | DIN | MCB Rating |
| MES121R SS | SA Type 1 | Not Supplied | 21 Pole | No MCB Supplied |
| MES121R-MI SS | SA Type 1 Single Phase MI (Stainless) | Yes | 21 Pole | 1P 63A 6kA |
| MES121R-MI3P SS | SA Type 1 Three Phase MI (Stainless) | Yes | 21 Pole | 3P 63A 6kA |
| Order Code | Name | Description | Quantity |
| MPS1-D | SA Type 1 STD Panel - Blank Pre-drilled | Meter Panel-350mmx 350mm Machined Meter Blank Panel with Hinges | 1 |
| RHS1 SS | SA Type 1 - Rain Hood (Suits SA Type 2) | Rain Hood - 316 Stainless Steel (Non Rebated Only) | 1 |
| PLS1 SS-100 | SA Type 1 - 1000mm Plinth (Suits SA Type 2) | Plinth - 3mm 316 Stainless Steel 1mm High (Non Rebated Only) | 1 |
| MPS1-B | SA Type 1 STD Panel - Blank | Meter Panel-350mmx 350mm Meter Blank Panel with Hinges | 1 |
MES121R-MISS
