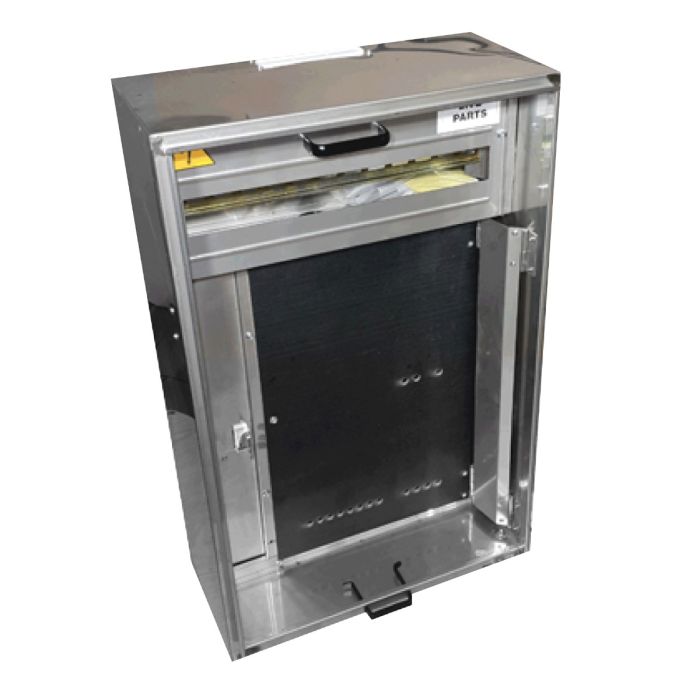

SA Type 2 Non Rebated Stainless Steel
In stock
SKU
MES221NR-MISS
$100.00
Quick Overview
- SA Power Network Approved
- IP23 Protection Rating
- Stainless Steel Construction (Grade 316)
- Pre-drilled Type X Meter Panel (H550mm x W350mm)
- Full 21 Module DIN Capacity Switchboard
Key Features
- SA Power Network Approved
- IP23 Protection Rating
- Stainless Steel Construction (Grade 316)
- Pre-drilled Type X Meter Panel (H550mm x W350mm)
- Full 21 Module DIN Capacity Switchboard
- Quality Hinged Door (Removable)
- Generous Wiring Room & Cable Access Top/Bottom
- 3 Additional Neutral Connections Provided For RCD
- Parts Bag Included
- Provision for One or Two Meters
- Provision for Lockable door
- 63A Meter Isolator
- Optional XL wide
- Available In Rebated or Non-Rebated (Straight Sided) Options
- Optional Plinth & Rain Hood For Free Standing Application (Straight Sided Only)
| Specifications | Width | Height | Depth |
| Enclosure Size | 500 | 800 | 250 |
| Meter Panel | 350 | 550 | 6 |
| Neutral Grid | 11 x ø5mm (Suit up to 10mm) 9 x ø8mm (Suits up to 25mm) | ||
| Earth Grid | 10 x ø5mm (Suit up to 10mm) 1 x ø8mm (Suits up to 25mm) | ||
| SA Type 2 / 316 Stainless Steel Rebated or Non-Rebated | |||||
| Order Code | Name | Meter Isolator | DIN | MCB Rating | Quantity |
| MES221NR SS | SA Type 2 (Stainless) | Not Supplied | 21 Pole | No MCB Supplied | 1 |
| MES221NR-MI SS | SA Type 2 Single Phase MI (Stainless) | Yes | 21 Pole | 1P 63A 6kA | 1 |
| MES221NR-MI3P SS | SA Type 2 Three Phase MI (Stainless) | Yes | 21 Pole | 3P 63A 6kA | 1 |
| Order Code | Name | Description | Quantity |
| MPS2-B | STD Panel - Blank | Meter Panel-350mm x 500mm Blank Meter Panel with Hinges | 1 |
| RHS1 SS | SA Type 1 - 1000mm Plinth (Suits SA Type 2) | Rain Hood - 316 Stainless Steel (Non Rebated Only) | 1 |
| PLS1 - 100SS | SA Type 1 - Rain Hood (Suits SA Type 2) | Plinth - 3mm 316 Stainless Steel 1m High (Non Rebated Only) | 1 |
| MPS2-D | STD Panel - Blank | Meter Panel - 350mm x 500mm Blank Meter Panel with Hinges | 1 |
MES221NR-MISS
