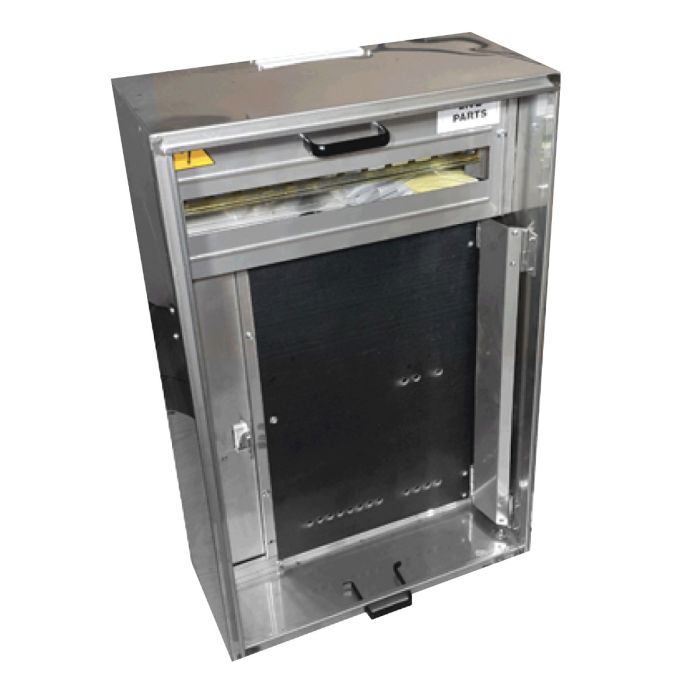

SA Type 2 Rebated Stainless Steel
In stock
SKU
MES221R-MISS
$100.00
Quick Overview
- SA Power Network Approved
- IP23 Protection Rating
- Stainless Steel Construction (Grade 316)
- Pre-drilled Type X Meter Panel (H550mm x W350mm)
- Full 21 Module DIN Capacity Switchboard
Key Features
- SA Power Network Approved
- IP23 Protection Rating
- Stainless Steel Construction (Grade 316)
- Pre-drilled Type X Meter Panel (H550mm x W350mm)
- Full 21 Module DIN Capacity Switchboard
- Quality Hinged Door (Removable)
- Generous Wiring Room & Cable Access Top / Bottom
- 3 Additional Neutral Connections Provided For RCD
- Parts Bag Included
- Provision for One or Two Meters
- Provision for Lockable door
- 63A Meter Isolator
- Optional XL wide
- Available In Non-Rebated & Straight Sided Options
- Optional Plinth & Rain Hood For Free Standing Application (Straight Sided Only)
| Specifications | Width | Height | Depth |
| Enclosure Size | 500 | 800 | 250 |
| Meter Panel | 350 | 550 | 6 |
| Neutral Grid | 11 x ø5mm (Suit up to 10mm) 9 x ø8mm (Suits up to 25mm) | ||
| Earth Grid | 10 x ø5mm (Suit up to 10mm) 1 x ø8mm (Suits up to 25mm) | ||
| SA TYPE 2 / 316 STAINLESS STEEL REBATED | ||||
| Product | Order Code | Meter Isolator | DIN | MCB Rating |
| SA Type 2 (Stainless) | MES221R SS | Not Supplied | 21 Pole | No MCB Supplied |
| SA Type 2 Single Phase MI (Stainless) | MES221R-MI SS | Yes | 21 Pole | 1P 63A 6kA |
| SA Type 2 Three Phase MI (Stainless | MES221R-MI3P SS | Yes | 21 Pole | 3P 63A 6kA |
| SA TYPE 2 / 316 STAINLESS STEEL STRAIGHT SIDED | ||||
| Product | Order Code | Meter Isolator | DIN | MCB Rating |
| SA Type 2 | MES221NR SS | Not Supplied | 21 Pole | No MCB Supplied |
| SA Type 2 Single Phase MI (Stainless) | MES221NR-MI SS | Yes | 21 Pole | 1P 63A 6kA |
| SA Type 2 Three Phase MI (Stainless | MES221NR-MI3P SS | Yes | 21 Pole | 3P 63A 6kA |
| Accessory | Order Code | Description |
| SA Type 1 - Rain Hood (Suits SA Type 2) | RHS1 SS | Rain Hood - Powder Coated Steel (Non Rebated Only) |
| SA Type 1 - 1000mm Plinth (Suits SA Type 2) | PLS1-100SS | Plinth - 3mm 316 Stainless Steel 1m High (Non Rebated Only) |
| STD Panel - Blank | MPS2-B | Meter Panel-350mm x 500mm Blank Meter Panel with Hinges |
