Quick Overview
- Fully compliant with AS/NZS3012
- Fully wired and labled versions available
- Fits up to 9 X double GPO's
- Strong and sturdy two piece stand with bolt down provisions
- Option for 3 phase outlet with or without mechanical protection
- Fully compliant with AS/NZS3012
- Fully wired and labled versions available
- Fits up to 9 X double GPO's
- Strong and sturdy two piece stand with bolt down provisions
- Option for 3 phase outlet with or without mechanical protection
- IP23 Constructed from galvanised 1.2mm steel - Powdercoated High Visibility Yellow
| Code | Description | Width (mm) | Height (mm) | Depth (mm) |
TPB-44 Box Only | Temporary Power Board - Box Only | 445 | 550 | 230 |
| TPB-44 Stand | Temporary Power Board - 2 Piece Stand Only | 445 | 1800 | 700 |
| Code | Description |
TPB-PW32A 1P

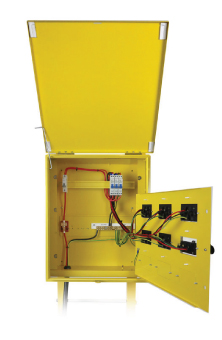

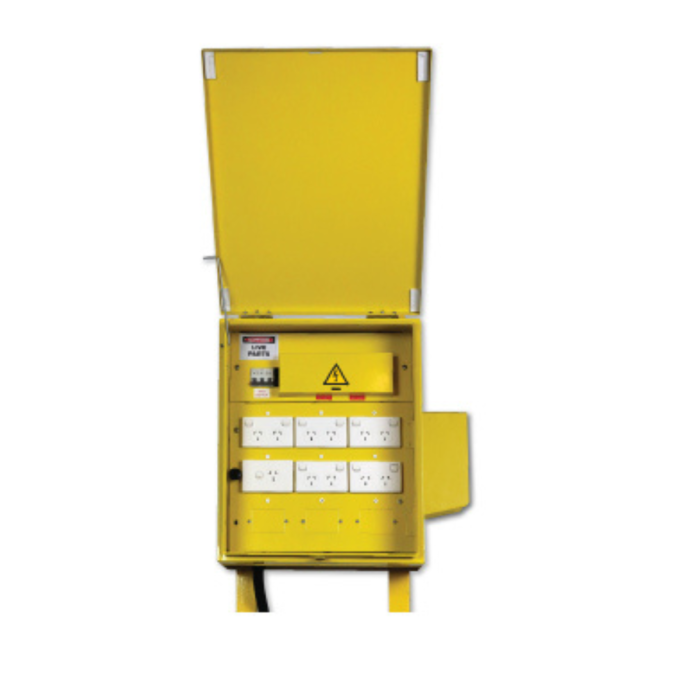

| Temporary Power Board including stand - Prewired 32A 1P with 3 X 10A Twin Double Pole & 1 X 15A Double Pole Power Points. Has capacity for up to 9 twin 1P Power Points. IP23 |
TPB-PW63A 1P

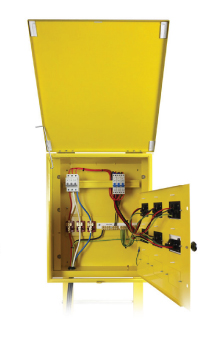

| Temporary Power Board including stand - Prewired 63A 1P with 5 X 10A Twin Double Pole & 1 X 15A Double Pole Power Points. Including active link for incoming 25mm and 3 out going cables up to 16mm. Has capacity for up to 9 twin 1P Power Points. IP23 |
TPB-PW63A 3P

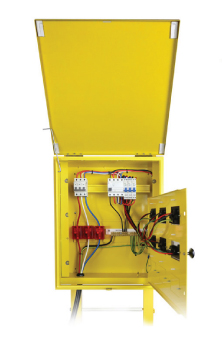

| Temporary Power Board including stand - Prewired 63A 3P for even distributed single phase across 3 phases with 5 X 10A Twin Double Pole & 1 X 15A Double Pole Power Points. Including 3 active links for incoming 25mm and 3 out going cables up to 16mm. Has capacity for up to 9 twin 1P Power Points. IP23 |
TPB-PW63A 3P OUTLET

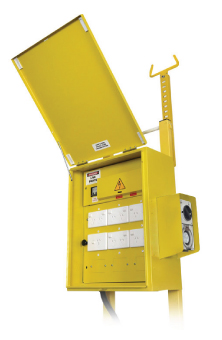

| Temporary Power Board including stand - Prewired 63A 3P for even distributed single phase across 3 phases with 5 X 10A Twin Double Pole & 1 X 15A Double Pole Power Points. One 5 pin external IP56 3P Outlet. Including 3 active links for incoming 25mm and 3 out going cables up to 16mm. Has capacity for up to 9 twin 1P Power Points. IP23 |
| TPB-STAND | Temporary Power Board Two Piece Stand Only 1800mm height with insulated cable tie rods top and bottom. Suited for 445 wide X 550 high X 230 Deep Temporary Power Board. |
| TPB-CABLE HOOK | Over head Insulated Cable Hook to support incoming and outgoing cables to an additional height of up to 2100mm. |
| TPB-TRAY | 3P Fold Away Service Tray for safe charging of batteried power tools |
| TPB-3P PROTECTION | External power point guard to provide mechanical protection for the outlet. |
