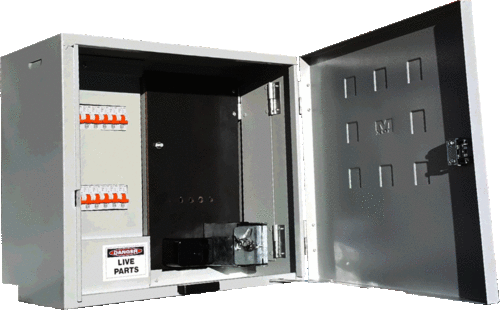

VIC Single Phase Combination Meter Enclosure
In stock
SKU
MEV120
$100.00
Quick Overview
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- Victorian Power Approved Internal Lock & Key (CL001)
- Suitable for up to 1 x Single Phase meters (Single Occupancy)
- Compliant with Victorian Service and Installation Rules (VESI Acceptance Number SIR 140216B)
Key Features
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- Victorian Power Approved Internal Lock & Key (CL001)
- Suitable for up to 1 x Single Phase meters (Single Occupancy)
- Compliant with Victorian Service and Installation Rules (VESI Acceptance Number SIR 140216B)
- IP23 Rated meter enclosure
- 75mm Behind Meter Panel
- Galvanised steel contruction Powder Coated Light Grey (RAL7035)
- Designed to AS/NZS 3000-2018 requirements
- 2 x 10 Module full DIN (Total 20 Pole Avaiable)
- 320mm x 385mm pre-drilled double hinged Meter Panel
- Metering Neutral Link 1 x 16mm2 / 1 x 25mm2 / 1 x 70mm2
- Hand Operated Service Duse Holder (22mm Fuse Link Diameter) Suitable up to 100A / 35mm2
- Door open catch / Door cable protector / Equipped with CL001 fuse lock protection
- Door open strap for easy installation & maintenence
| Specifications | Width | Height | Depth |
| Size | 485 | 430 | 280 |
| Meter Panel | 220 | 390 | 6 |
| Neutral Grid | 11 x ø5mm (Suits up to 10mm) 9 x ø8mm (Suits up to 25mm) | ||
| Earth Grid | 10 x ø5mm (Suits up to 10mm) 1 x ø8mm (Suits up to 25mm) | ||
| Product | Order Code | Meter Isolator | Quantity |
| Combintion - 1 Phase | MEV120 | 20 DIN Switchboard with CL001 Service Fuse Lock-off | 1 |
| Combintion - 1 Phase | MEV120 | 20 DIN Switchboard with CL001 Service Fuse Lock-off | 4 |
| Accessory/Spare Parts | Order Code | Desciption | Quantity |
| Spare Part - MEV120 Escutcheon | EV120 | MEV120 Replacement Escutcheon Plate | 1 |
| Spare Part - MEV120 Door | DRV120 | MEV120 Replacement Hinged Door | 1 |
