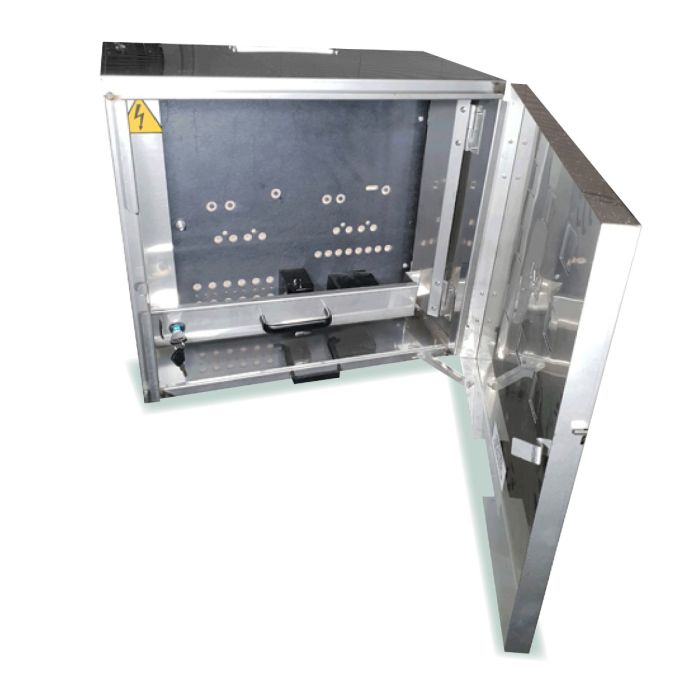

VIC Combination Multi Phase Stainless Steel Meter Enclosure
In stock
SKU
MEV121-SS
$100.00
Quick Overview
- Victorian Electricity Supply Industry (VESI) Acceptance No. SIR 990501B
- Victorian Power Approved Internal Lock & Key (CL001)
- IP23 Protection Rating
- Powder coated for additional corrosion protection (RAL7035)
- Assembled with Neutral & Earth Bar Grid
Key Features
- Victorian Electricity Supply Industry (VESI) Acceptance No. SIR 990501B
- Victorian Power Approved Internal Lock & Key (CL001)
- IP23 Protection Rating
- Powder coated for additional corrosion protection (RAL7035)
- Assembled with Neutral & Earth Bar Grid
- 316 Stainless Steel Natural Finish
- 21 Module Capacity Switchboard.
- Removable door with retainer bar to keep door open.
- Supplied with full length din rail.
- Cable access from top & bottom
- Pole fillers & Busbar etc Included In Parts Bag.
- Supplied With Heavy Duty Neutral Link.
- Louvered door to provide ventilation.
- Quality galvanised steel construction
- Fitted with quality 100A Fuse Holder & Neutral Link.
- Provision on meter panel for two meters.
- Approved lock and key to protect service fuse.
- Rain Hood available extra
- Spare parts kit supplied.
| Specifications | Width | Height | Depth |
| Enclosure Size | 470 | 670 | 270 |
| Meter Panel | 400 | 380 | 6 |
| Neutral Grid | 11 x ø5mm (Suit up to 10mm) 9 x ø8mm (Suits up to 25mm) | ||
| Earth Grid | 10 x ø5mm (Suit up to 10mm) 1 x ø8mm (Suits up to 25mm) | ||
| Product | Order Code | Meter Isolator |
| Combination Stainless | MEV121 SS | Meter + 21 DIN Enclosure 75mm Behind Panel (Stainless Steel) |
| Accessory | Order Code | Description |
| VIC 1 Rain Hood - Stainless Steel | RHV1 SS | Victorian Single Tennancy 316 Stainless Steel Rain Hood |
| VIC 1 Plinth - Stainless Steel | PLV1 - 100 SS | 3mm Stainless Steel 1000(H) 475mm (W) x 250mm(D) |
| Spare Part - Standard Panel | MPV1 - D | Hinged Meter Pannel Drilled for Victorian Standard |
| Spare Part - Blank Panel | MPV1 - B | Hinged Meter Pannel Blank for Custom Projects |
MEV121-SS
