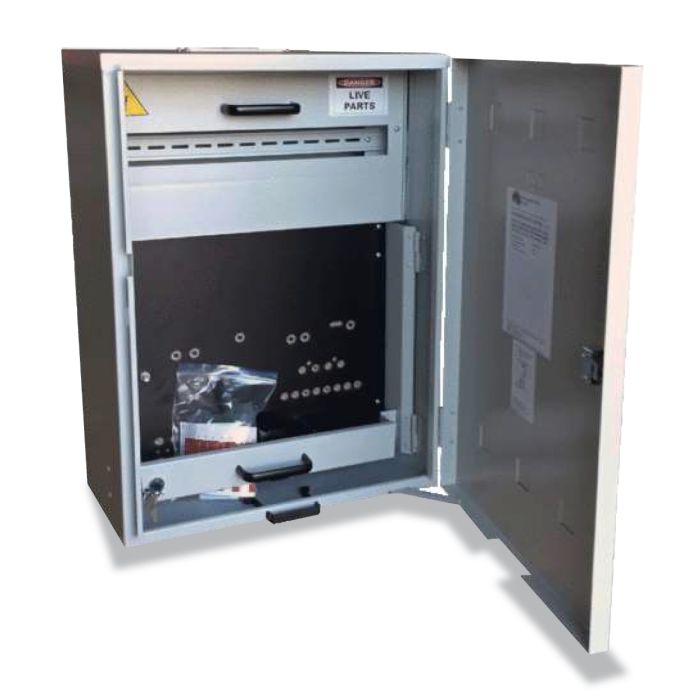

VIC Multi Phase Combination 150mm Behind Panel
In stock
SKU
MEV121-15
$100.00
Quick Overview
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- Victorian Power Approved Internal Lock & Key (CL001)
- Suitable for up to 2 x Single Phase meters (Single Occupancy)
- Compliant with Victorian Service and Installation Rules (VESI Acceptance Number SIR140216B)
Key Features
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- Victorian Power Approved Internal Lock & Key (CL001)
- Suitable for up to 2 x Single Phase meters (Single Occupancy)
- Compliant with Victorian Service and Installation Rules (VESI Acceptance Number SIR140216B)
- 150mm Behind Meter Panel
- Galvanised steel construction Powder Coated Light Grey (RAL7035)
- Designed to AS/NZS 3000:2018 requirements
- 21 Module full DIN
- Metering Neutral Link 1 x 16mm2 /1 x 25mm2 / 170mm2
- Hand Operated Service Fuse Holder (22mm Fuse Link Diameter) Suitable for up to 100A / 35mm2 Supply
- Door open catch / Door cable protector / Equipped with CL001 fuse lock protection
- Door open strap for easy installation & maintenance

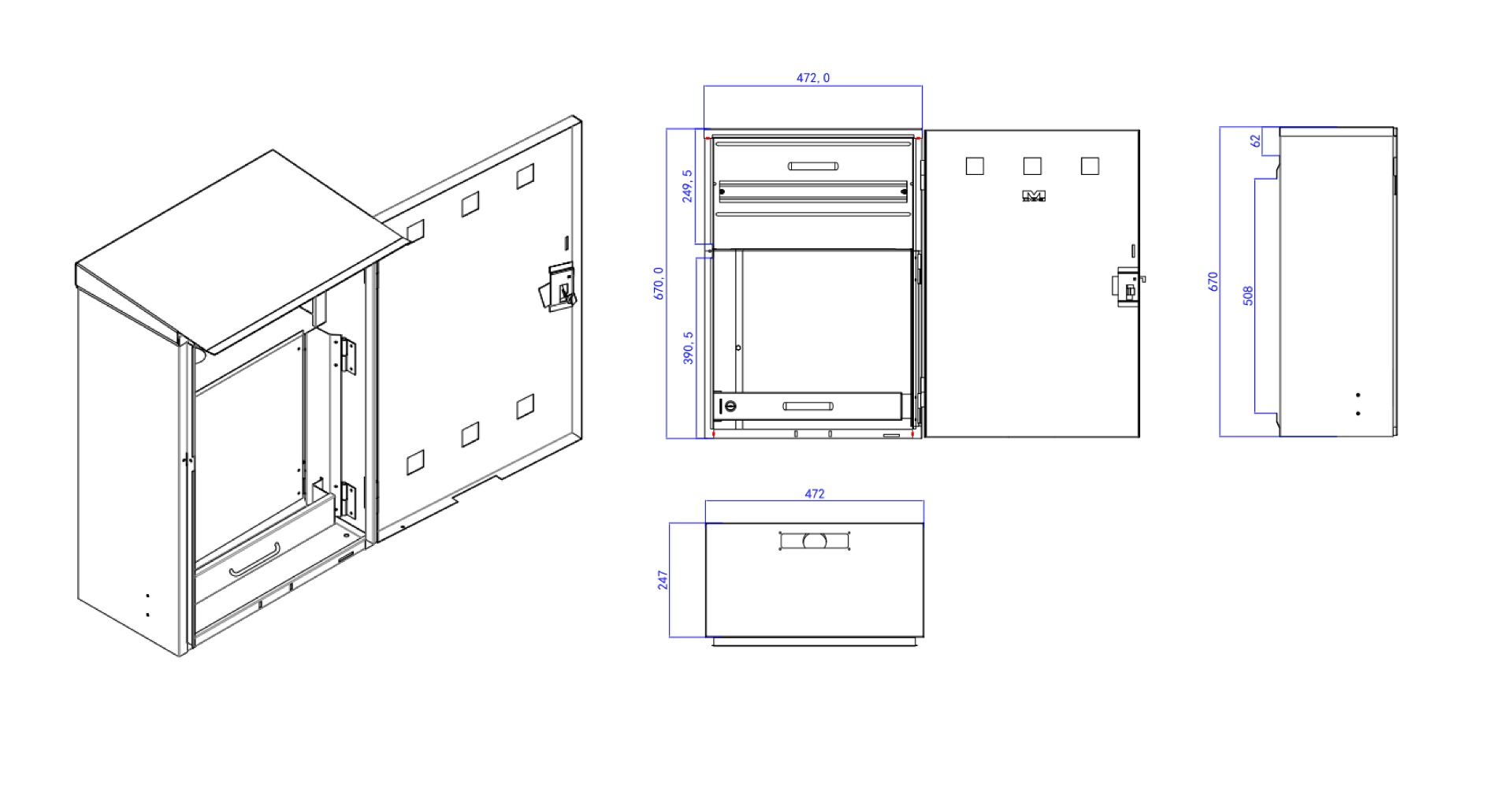

Specifications | Width | Height | Depth |
Size - MEV121-15 | 470 | 670 | 345 |
Meter Panel | 400 | 380 | 6 |
Neutral Grid | 11 x Ø5mm (Suits up to 10mm) 9 x Ø8mm (Suits up to 25mm) | ||
Earth Grid | 10 x Ø5mm (Suits up to 10mm) 1 x Ø8mm (Suits up to 25mm) |
Product | Order Code | Meter Isolator | Quantity |
Combination (150mm) | MEV121-15 | Meter + 21 DIN Enclosure 150mm Behind Panel | 1 |
Combination (150mm) | MEV121-15 | Meter + 21 DIN Enclosure 150mm Behind Panel | 4 |
Accessories/Spare Parts | Order Code | Description | Quantity |
Spare Part - MEV121 Escutcheon | EV121 | MEV121 Replacement Escutcheon Plate | 1 |
Spare Part - MEV121 Door | DRV121 | MEV121 Replacement Hinged Door | 1 |
Spare Part - MEV1 STD. Panel | MPV1-D | MEV1 Hinged Meter Pannel Drilled for Victorian Standard | 1 |
Spare Part - MEV1 Blank Panel | MPV1-B | MEV1 Hinged Meter Pannel Blank for Custom Projects | 1 |
VIC 1 Rain Hood | RHV1 | Victorian Single Tennancy Rain Hood | 1 |
VIC 1 Plinth 650 | PLV1-65 | 3mm Steel 650mm(H) x 475mm(W) x 250mm(D) | 1 |
VIC 1 Plinth 1000 | PLV-100 | 3mm Steel 1000mm(H) x 475mm(W) x 250mm(D) | 1 |
