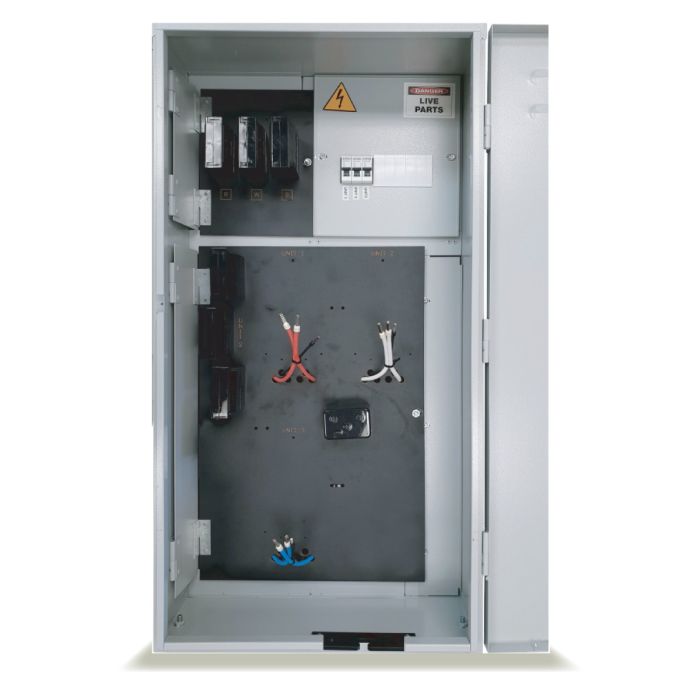

VIC Prewired 3 Meter Enclosure

In stock
SKU
PW1-MEV4-3
$100.00
Contact Us
Quick Overview
  • Victorian Electricity Supply Industry (VESI) Accepted
  • IP23 Protection Rating
  • Compliant with Victorian Service and Installation Rules (VESI Acceptance Number SIR140216B)
  • 150mm Behind Meter Panel
  • Galvanised steel construction Powder Coated Light Grey (RAL7035)

Key Features

  • Victorian Electricity Supply Industry (VESI) Accepted
  • IP23 Protection Rating
  • Compliant with Victorian Service and Installation Rules (VESI Acceptance Number SIR140216B)
  • 150mm Behind Meter Panel
  • Galvanised steel construction Powder Coated Light Grey (RAL7035)
  • Designed to AS/NZS 3000:2018 requirements
  • 8 Module full DIN
  • Consumer Main Switches - Available for 3 x Clipsal 4CB150/6MCB' or 4x Clipsal 4CB150/6MCB's
  • Hand Operated Service Fuse Holder (22mm Fuse Link Diameter)
  • Suitable for up to 100A / 35mm2 Supply - Only for PW1-MEV4-4
  • Door cable protector
  • Door open strap for easy installation & maintenance
  • Plinth, Rainhood available as extras (PW1-MEV4-3) and flush mount available (PW1-MEV4-4)
 Code  OccupancyWidth HeightDepthPanel Size
PW1 - MEV4 - 33 Meter495 mm940 mm355 mm 400 x 600 mm



 Pre - Wired
 16 mm Flex Pre - wired Options Order Code  Service Fuses  Meter Fuse Holders  Sub Mains MCB Quantity
 Single Phase 3 Meter  PW3 - MEV4 - 3  3 X 100A  3 X 100A  3 X 1P 50A 1
 Three Phase 3 Meter - Vic 6 Spec   PW3 - MEV6 - 3  3 X 100A  9 X 100A  3 X 3P 50A 1
Accessory/Spare Parts Order CodeDescription Quantity
 Vic 4 Rain Hood
 RHV4
 Victoria 4 Rain Hood / Canopy
1
Vic 4 PlinthPLV 4 - 653mm Steel 650 (H) x 490 (W) x 300(D)1
