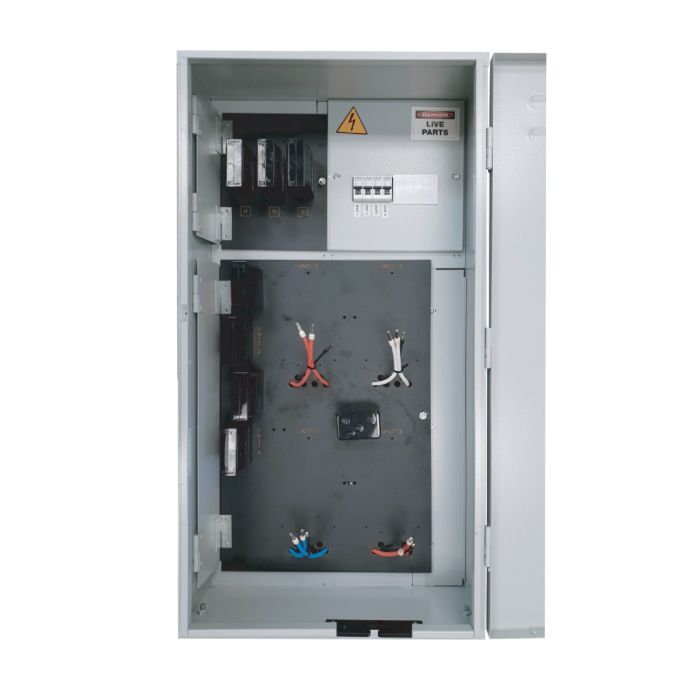

VIC Prewired 4 Meter Enclosure
In stock
SKU
PW1-MEV4-4
$100.00
Quick Overview
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- Compliant with Victorian Service and Installation Rules (VESI Acceptance Number SIR140216B)
- 150mm Behind Meter Panel
Key Features
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- Compliant with Victorian Service and Installation Rules (VESI Acceptance Number SIR140216B)
- 150mm Behind Meter Panel
- Galvanised steel construction Powder Coated Light Grey (RAL7035)
- Designed to AS/NZS 3000:2018 requirements
- 8 Module full DIN
- Consumer Main Switches - Available for 3 x Clipsal 4CB150/6MCB' or 4x Clipsal 4CB150/6MCB's
- Hand Operated Service Fuse Holder (22mm Fuse Link Diameter)
- Suitable for up to 100A / 35mm2 Supply - Only for PW1-MEV4-4
- Door cable protector
- Door open strap for easy installation & maintenance
- Plinth, Rainhood available as extras (PW1-MEV4-3) and flush mount available (PW1-MEV4-4)
| Code | Occupancy | Width | Height | Depth | Panel Size |
| PW1 - MEV4 - 4 | 4 Meter | 495 mm | 940 mm | 355 mm | 400 x 600 mm |
| Pre - Wired | |||||
| 16 mm Flex Pre - wired Options | Order Code | Service Fuses | Sub Mains | MCB | Quantity |
| Single Phase 4 Meter | PW1 - MEV4 - 4 | 3 X 100A | 4 X 100A | 4 X 1P 50A | 1 |
| Three Phase 4 Meter - Vic 6 Spec | PW3 - MEV6 - 4 | 3 X 100A | 12 X 100A | 4 X 3P 50A | 1 |
| Accessory/Spare Parts | Order Code | Description | Quantity |
| Vic 4 Rain Hood | RHV4 | Victoria 4 Rain Hood / Canopy | 1 |
| Vic 4 Plinth | PLV 4 - 65 | 3mm Steel 650 (H) x 490 (W) x 300(D) | 1 |
PW1-MEV4-4
