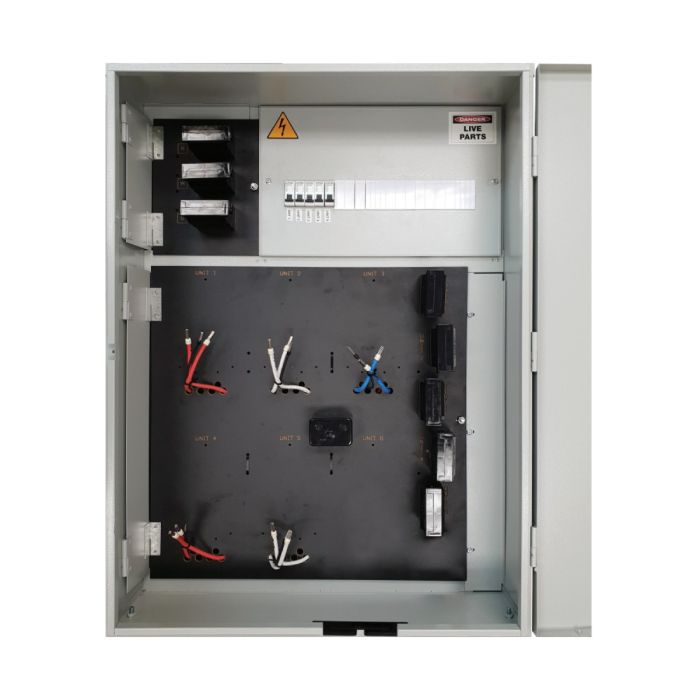

VIC Prewired 5 Meter Enclosure
In stock
SKU
PW1-MEV6-5
$100.00
Quick Overview
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- Compliant with Victorian Service and Installation Rules (VESI Acceptance Number SIR140216B)
- 150mm Behind Meter Panel
- Galvanised steel construction Powder Coated Light Grey (RAL7035)
Key Features
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- Compliant with Victorian Service and Installation Rules (VESI Acceptance Number SIR140216B)
- 150mm Behind Meter Panel
- Galvanised steel construction Powder Coated Light Grey (RAL7035)
- Designed to AS/NZS 3000:2018 requirements
- 20 Module full DIN
- Consumer Main Switches - 5 x 50 AMP MCB
- Service Neutral Link 1 x 16mm2 / 1 x 25mm2 / 1 x 70mm2
- Hand Operated Service Fuse Holder (22mm Fuse Link Diameter) Suitable for up to 100A / 35mm2 Supply
- Door cable protector
- Door open strap for easy installation & maintenance
- Plinth, Rainhood and flush mount available
- Flush Mountable
| Code | Occupancy | Widthh | Height | Depth | Panel Size |
| PW1-MEV6-5 | 5 Meter | 695 mm | 940 mm | 355 mm | 600 x 600 mm |
| Pre - Wired | ||||
| 16 mm Flex Pre - wired Options | Order Code | Service Fuses | Meter Fuse Holders | Sub Mains MCB |
| Single Phase 5 Meter | PW-MEV6-5 | 3x100A | 5x100A | 5x1P 50A |
| Accessory/Spare Parts | Order Code | Desciption |
| Vic 6 Rain Hood | RHV6 | Victoria 6 Meter Rain Hood / Canopy |
| Vic 6 Plinth | PLV6-65 | Victorian 6 Meter Plinth 3mm Steel 650(H) 690(W) 300(D) |
PW1-MEV6-5
