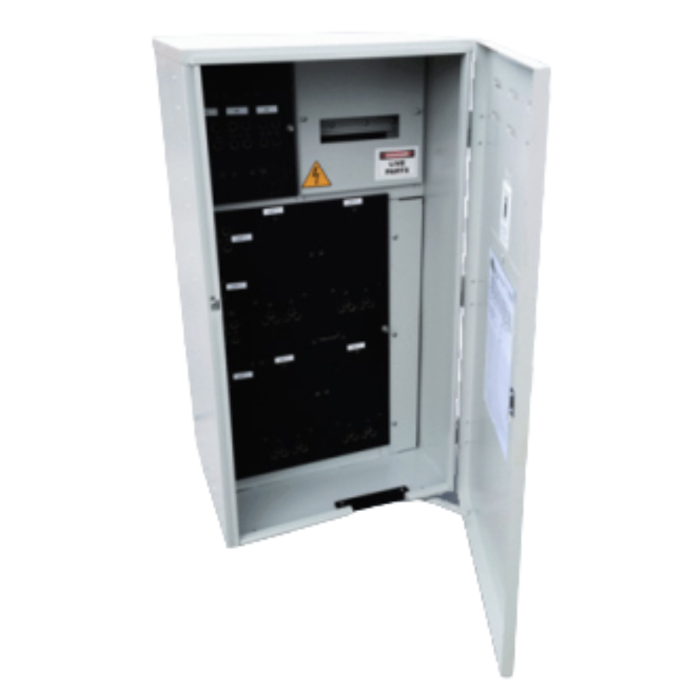

Multi Tenancy 4 Meter Enclosures
In stock
SKU
MEV4
$100.00
Quick Overview
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- SPD Fuse Holder on Separate Panel
- Earth & Neutral Bar Grid Fitted & Earthed to Enclosure
- Full 10 Module DIN Capacity Switchboard
Key Features
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- SPD Fuse Holder on Separate Panel
- Earth & Neutral Bar Grid Fitted & Earthed to Enclosure
- Full 10 Module DIN Capacity Switchboard
- Heavy Duty Hinged Door (Removable)
- Generous Cable Access Top / Bottom
- Galvanised Steel Construction
- Powder Coating Finish Light Grey (RAL7035)
- Parts Bag Included
- Provision For Up To Four Single Phase Meters
- Available Pre-Wired with 16mm Australian Made Flex Cable
- Fuse Holders & Sub Mains MCB's Installed with Pre Wired
| Specifications | Width | Height | Depth |
| Size | 490 | 935 | 355 |
| Service Panel | 200 | 260 | 6 |
| Meter Grid | 400 | 600 | 6 |
| Neutral Grid | 2 x Ø5mm (Suits up to 10mm) 10 x Ø8mm (Suits up to 25mm) | ||
| Earth Grid | 1 x Ø5mm (Suits up to 10mm) 10 x Ø8mm (Suits up to 25mm) | ||
| Order Code | Name | Meter Isolator | Quantity |
| MEV4 | Standard | 4 Meter Multiple Tenency 150mm Behind Panel 8 Pole | 1 |
| MEV4 | Standard | 4 Meter Multiple Tenency 150mm Behind Panel 8 Pole | 4 |
| MEV4-P65H | Plinth/Hood Mounted | Plinth & Hood Mounted 4 Meter Multiple Tenency 150mm Behind Panel 8 Pole | 1 |
| MEV4-P65H | Plinth/Hood Mounted | Plinth & Hood Mounted 4 Meter Multiple Tenency 150mm Behind Panel 8 Pole | 4 |
| Order Code | Name | Description | Quantity |
| RHV4 | Vic 4 Rain Hood | Victoria 4 RainHood / Canopy | 1 |
| PLV4-65 | Vic 4 Plinth | 3mm Steel 650(H) x 490(W) x 300(D) | 1 |
| EV4 | Spare Part - Vic 4 Escutcheon | 3mm Steel 650(H) x 490(W) x 300(D) | 1 |
| DRV4L | Spare Part - Door & Latch | Vic MEV4 Replacement Escutcheon Plate | 1 |
| MPV4-3D | Spare Part - Vic 4/3 Meter Panel | STD VIC 4 Meter Replacement Hinged Door | 1 |
| MPV4-4D | Spare Part - Vic 4/4 Meter Panel | Hinged Meter Panel Drilled for 4 Units | 1 |
| MPV4-2X3P | Spare Part - Vic 4/2 x3 Phase Panel | Hinged Meter Panel Drilled for 2 of 3 Phase Units | 1 |
| MPV4-B | Spare Part - Vic 4 Blank Panel | Hinged Panel Blank for Custom Projects | 1 |
| MPV-SF | Spare Part - Service Fuse Panel | Hinged Service Fuse Panel 200 x 260 x 6mm | 1 |
MEV4
